Heavy-Duty Frame Welded Mesh Highway Guardrail

Heavy-Duty Welded Mesh Barrier for Highway, Railway & Construction Zones

Surface treatment
Quantity
Request Quote
Request Quote

"Rigid Protection, Modular Installation – Your Trusted Traffic Isolation Partner"

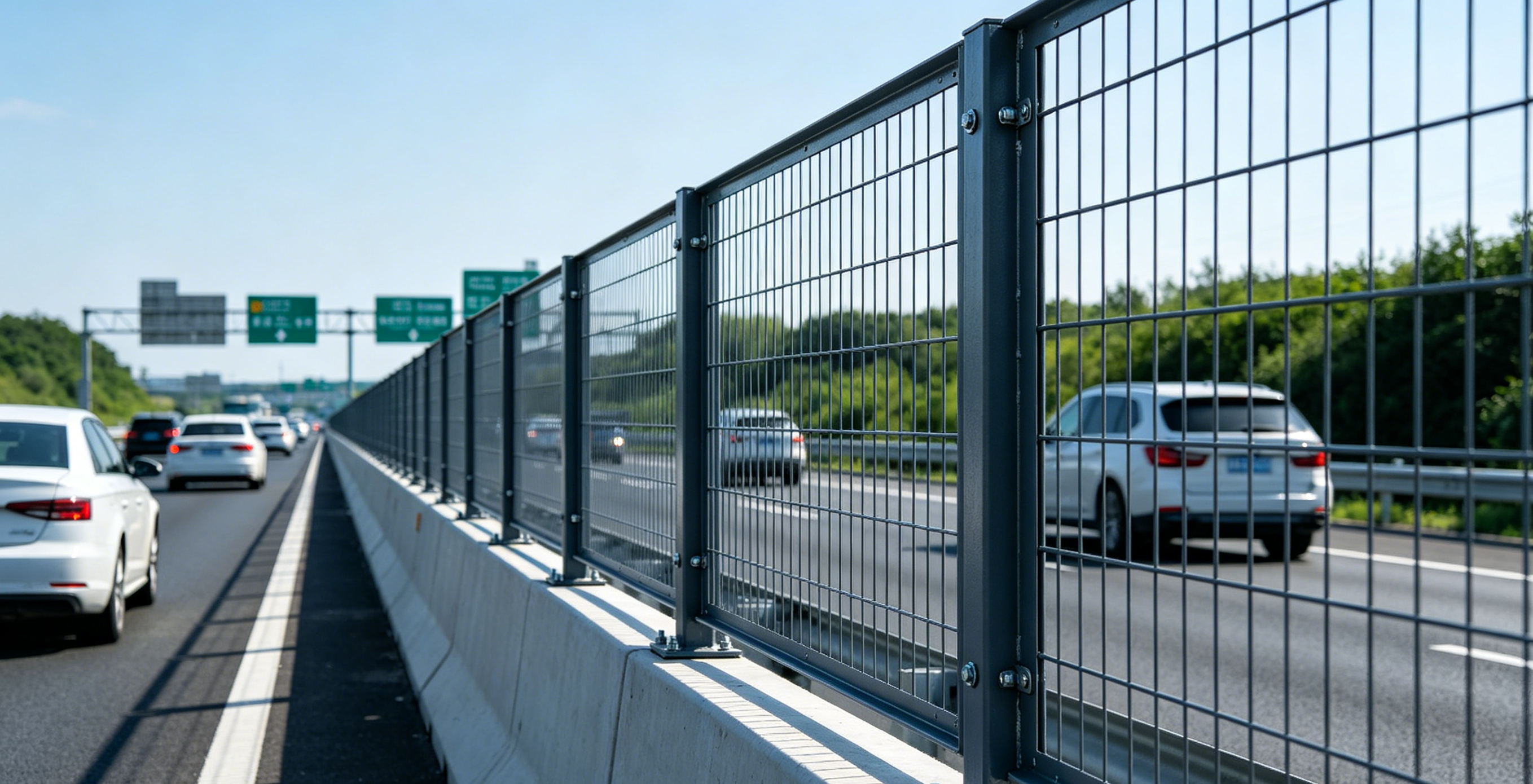

Frame Mesh Traffic Fence


Heavy‑Duty Frame Welded Mesh Highway Guardrail


Product Overview


This frame mesh traffic fence is constructed with a reinforced square tube frame and high‑strength welded wire mesh, forming an integrated rigid barrier for traffic isolation and boundary protection. With professional anti‑corrosion surface treatment and modular design, it ensures long service life, stable performance, and fast construction, widely used in highway, railway, and construction projects.


Key Features



  • Sturdy square tube frame + welded wire mesh structure, high rigidity and strong impact resistance
  • Multi-layer anti-corrosion coating (hot-dip galvanized / galvanized + powder coated) for outdoor durability
  • Modular design for easy transportation, installation and replacement
  • Standardized size compatible with highway posts, strong universality
  • Neat and flat appearance, good visibility and protective effect




Application Scenarios



  • Highway median separation and roadside isolation
  • Railway boundary closed protection
  • Road construction zone safety enclosure
  • Factory, port, and logistics park perimeter fencing


✅ Sturdy Structure
  • Reinforced square tube frame (20×30mm/25×25mm optional) + 3.8mm welded wire mesh
  • Integrated welding process, no loose joints, strong impact resistance.
✅ Superior Anti-Corrosion
  • Hot-dip galvanized (≥100μm) or galvanized + powder coated finish
  • 15-20 year service life in outdoor, coastal, or humid areas.
✅ Modular & Easy Installation
  • Standard panel size (2.0×2.5m/2.0×3.0m optional)
  • Compatible with highway posts (round/square), no complex tools needed.
✅ Universal Compatibility
  • Customizable mesh size (50×50mm/75×150mm), height, and color (silver, green, gray)
  • Fits highway, railway, construction, factory, and park projects.
Item
Specification
Frame Tube Size
20×30mm / 25×25mm / Custom
Wire Diameter
3.0-4.0mm
Mesh Size
50×50mm / 75×150mm / Custom
Panel Size
2.0×2.5m / 2.0×3.0m / Custom
Surface Finish
Hot Dip Galvanized / Galvanized + Powder Coated
Service Life
15-20 Years
Certification
ISO 9001, CE
🤝 Why Choose Us?
  • Quality Assurance: Automatic welding machines + strict quality inspection (each panel tested for load-bearing).
  • Custom Solutions: Tailor size, mesh, finish to your project requirements.
  • Global Supply: Fast delivery (7-12 days for bulk orders) + professional logistics support.
  • After-Sales Service: 1-year warranty + technical installation guidance.
