🏛️ Introduction: Two Industry-Standard Traffic Guardrails
As the backbone of global highway safety, W-Beam (2-Wave) and Thrie-Beam (3-Wave) guardrails are engineered to protect vehicles, drivers, and roadside infrastructure from collisions. While both deliver reliable performance, their unique designs and capabilities make them suitable for different road conditions. Below is a detailed comparison to help you select the perfect solution for your project.
📸 Product Images & Key Details
1. W-Beam Guardrail (2-Wave)

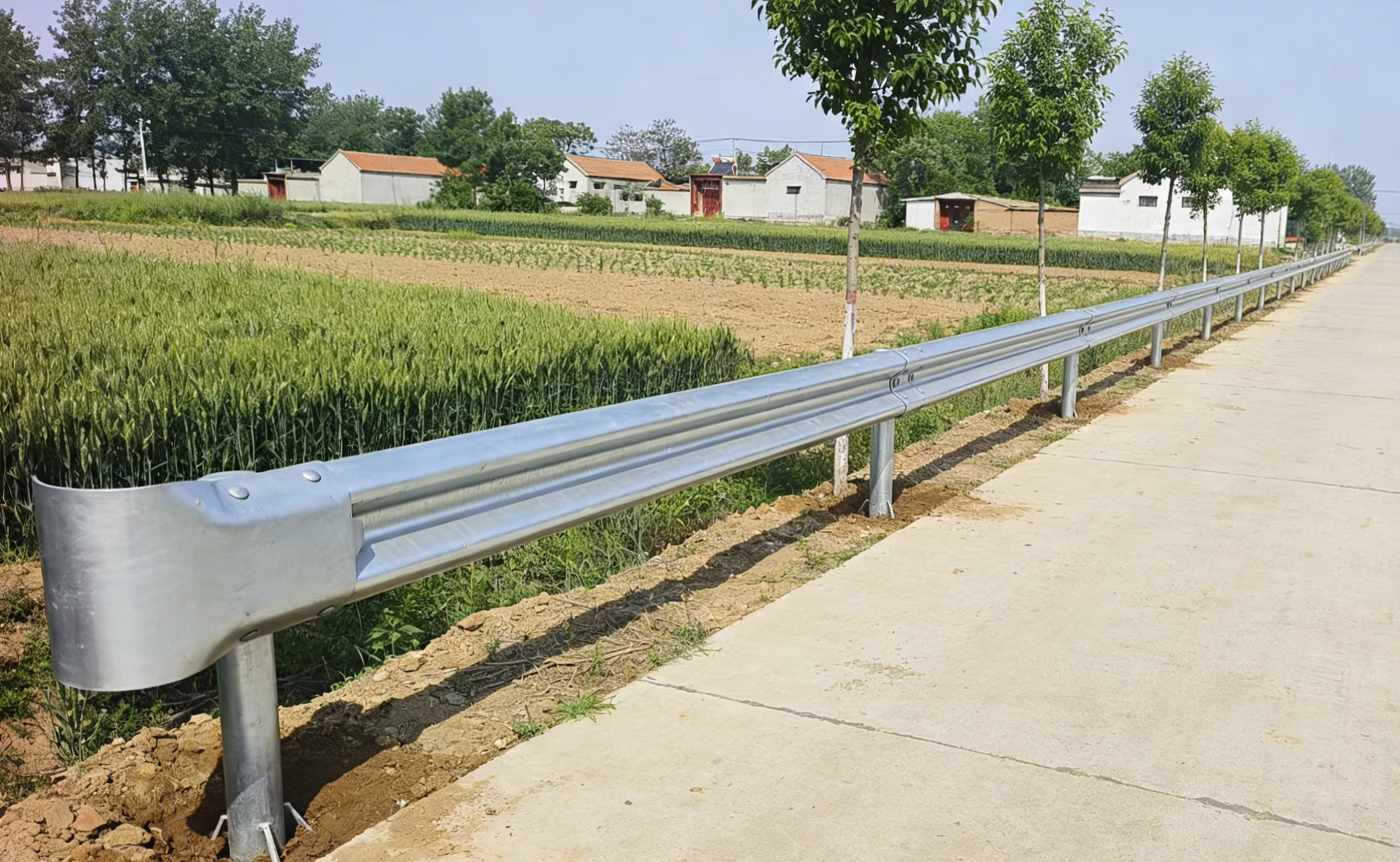

[W-Beam Guardrail on Rural Highway]
Core Trait: Cost-effective, flexible, and reliable for standard traffic conditions
- Visual Feature: 2 distinct waves, compact 310mm width, sleek silver galvanized finish
- Core Use: Ordinary roads, rural highways, urban streets, and low-to-medium speed zones
2. Thrie-Beam Guardrail (3-Wave)

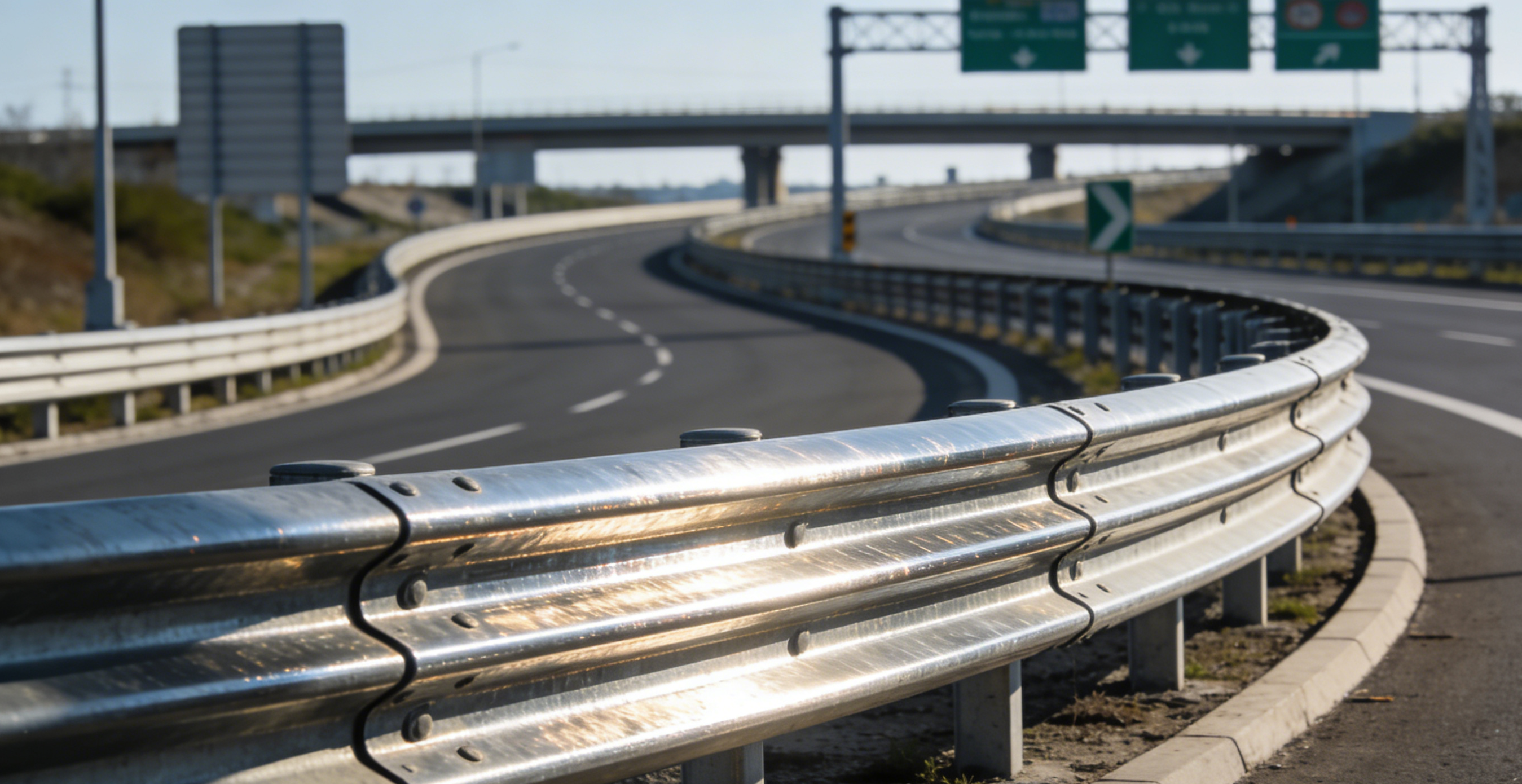

[Thrie-Beam Guardrail on Expressway]
Core Trait: Heavy-duty, high-impact resistance, designed for high-risk roads
- Visual Feature: 3 reinforced waves, wider 506mm profile, robust structure with large anti-blocks
- Core Use: Highways, expressways, sharp bends, long downhill sections, and accident-prone areas
📊 Key Differences: W-Beam vs Thrie-Beam
Comparison Item
| W-Beam Guardrail (2-Wave)
| Thrie-Beam Guardrail (3-Wave)
|
Wave Quantity
| 2 waves
| 3 waves
|
Standard Size (mm)
| 4320×310×85×3/4
| 4320×506×85×3/4
|
Width
| 310mm (compact)
| 506mm (wider, better force distribution)
|
Crash Rating
| A/B/C Class (adapts to ≤80km/h)
| A/SB/SS/SA Class (adapts to ≥100km/h)
|
Structural Rigidity
| Semi-flexible, energy-absorbing
| More rigid, stronger bending resistance
|
Post Type
| φ114/140 round tube
| φ140 round tube / 130×130 square tube
|
Connection Parts
| Standard block/bracket
| Twin anti-block / 3-wave large bracket
|
Service Life
| 15-20 years (HDG finish)
| 20-25 years (HDG + powder coating option)
|
Cost
| Economical, lower material & installation cost
| Premium, ~20% higher than W-Beam
|
✨ Core Surface Finishes
Both guardrails share industry-leading surface treatment technologies to ensure long-lasting corrosion resistance:
- Hot Dip Galvanized (HDG) - Standard
- Zinc layer thickness ≥100μm, excellent rust resistance in outdoor, coastal, or humid environments
- Silver-gray metallic finish, low maintenance
- Hot Dip Galvanized + Powder Coated - Premium
- Double anti-corrosion: Galvanized base + electrostatic powder coating
- Custom colors (white, gray, yellow, blue, green) for municipal or landscape projects
- Enhanced UV resistance, no fading or chipping for 15+ years
🛣️ Application Scenarios
W-Beam Guardrail (2-Wave) is Ideal For:
- Rural highways and county roads (speed limit ≤80km/h)
- Urban arterial roads and residential area roads
- Temporary construction zones and low-traffic corridors
- Budget-constrained projects requiring reliable basic protection
Thrie-Beam Guardrail (3-Wave) is Must-Have For:
- Highways and expressways (speed limit ≥100km/h)
- Sharp bends, long downhill sections, and mountainous roads
- Bridges, tunnel entrances, and high-fill embankments
- High-traffic or accident-prone areas (prevents vehicle rollover/penetration)
🤔 How to Choose?
- 👉 Choose W-Beam if: You need a cost-effective solution for standard-speed roads with low collision risks.
- 👉 Choose Thrie-Beam if: Safety is paramount, and the project involves high-speed traffic, complex terrain, or heavy vehicle flow.
We offer both guardrails with full customization (size, thickness, finish, color) and global certifications (AASHTO M180, EN 1317, MASH TL-3/TL-4). All products are manufactured with robotic welding for uniform quality and modular design for quick installation.
📩 Get Your Custom Quote
Tell us your project details (road type, speed limit, quantity, finish) and we’ll provide a tailored solution with competitive pricing and fast delivery (7-12 working days for bulk orders). Contact our technical team for free design drawings or sample requests!
